Hospital Elevators

Hospital Elevators

Liftone Technologies (India) Private Limited manufactures specialized Hospital Elevators designed to provide smooth, hygienic, safe, and efficient transportation within hospitals, healthcare centers, nursing homes, medical institutes, and emergency care facilities. These elevators are specially engineered to accommodate patients, stretchers, wheelchairs, hospital beds, and medical equipment with maximum comfort and reliability.

Our hospital lifts are designed with vibration-free movement, spacious cabins, automatic rescue systems, emergency controls, antibacterial finishes, and silent operation to ensure a comfortable and stress-free experience for patients and healthcare staff. Liftone Technologies uses advanced technology and international safety standards to deliver elevators that meet the demanding requirements of modern healthcare infrastructure.

The elevators are equipped with wide automatic doors, precise leveling systems, backup power support, and advanced control panels to enable safe and uninterrupted movement during emergency situations. We also provide customized hospital elevator solutions according to hospital building layouts and operational requirements.

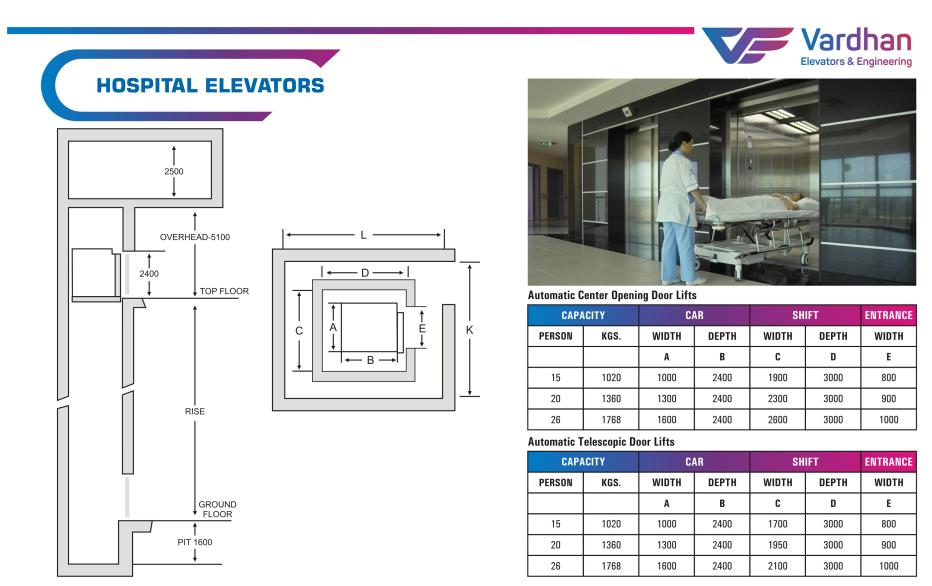

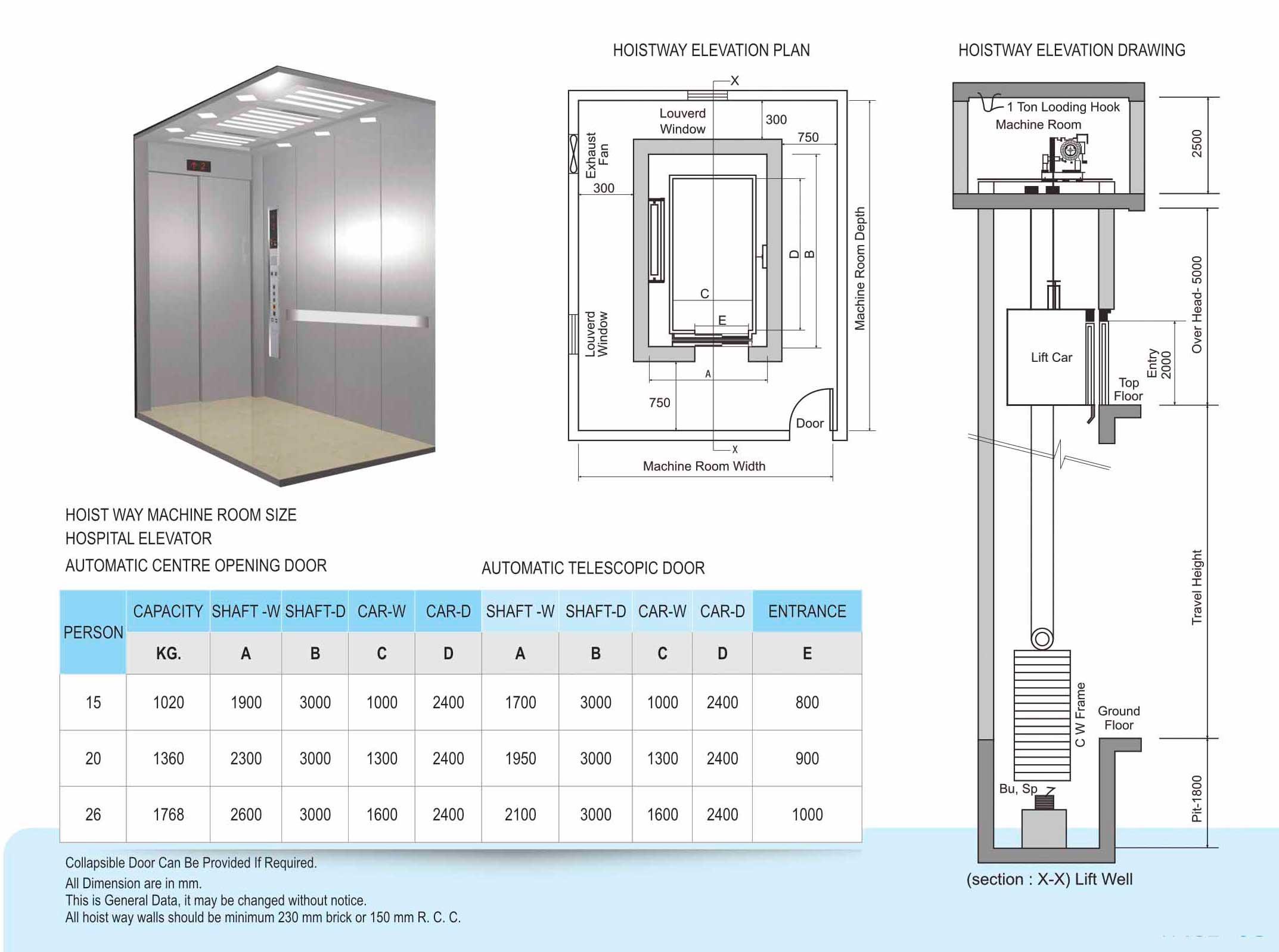

Standard Hospital Elevator Dimensions

• Capacity: 8 Passenger to 26 Passenger
• Load Capacity: 544 KG to 2000 KG
• Cabin Width: 1400 mm to 2400 mm
• Cabin Depth: 2400 mm to 3000 mm
• Cabin Height: 2200 mm to 2500 mm
• Door Width: 900 mm to 1400 mm
• Speed: 0.5 m/s to 1.75 m/s
• Door Type: Automatic Center Opening
• Structure: Stainless Steel / Antibacterial Finish
• Power Supply: 220V / 415V

Liftone Technologies (India) Private Limited also provides customized hospital elevator dimensions, stretcher lift solutions, and complete installation services for healthcare projects.
